$related() - Related Instances

This keyword is used to dynamically find and display related instances from another definition using a query instead of a direct reference field. Unlike $references(), which depends on an existing reference relationship, $related() searches instances matching a given query expression.

Usage:

$related(definition_name,query,[Parameters])

Options:

• definition_name: The related definition name
• query: A query expression used to find related instances. The query can include placeholders

Parameter	Description
showImport	when true, the Import Records button for importing instances to the related definition will be displayed. Default value is false
view	the visualization to apply to the search results (default: undefined). Usage: view:name_of_the_view
showViews	when true, the Active View button for selecting one of the available instance listing views will be displayed. Default value is false
showActions	when true, all toolbar buttons (Export, Edit in Group, and Delete) for interacting with multiple instances and all actions for interacting with individual instances (Delete and Duplicate) will be displayed. Default value is false.

Limitations

It is not possible to create new instances directly from a $related() field. The keyword only supports searching and displaying existing instances.

Queries with placeholders

As mentioned the query can include placeholders

__${FIELD_NAME}__

These placeholders are replaced in real time with values from the current instance.

$related(Tickets, type:__Ticket Type__)

In this example:

• The query searches instances from the Tickets definition.
• The placeholder __Ticket Type__ is replaced by the current value of the field Ticket Type.
• Only tickets related with the selected type are returned.

Examples

1. Using a query to find similar tickets

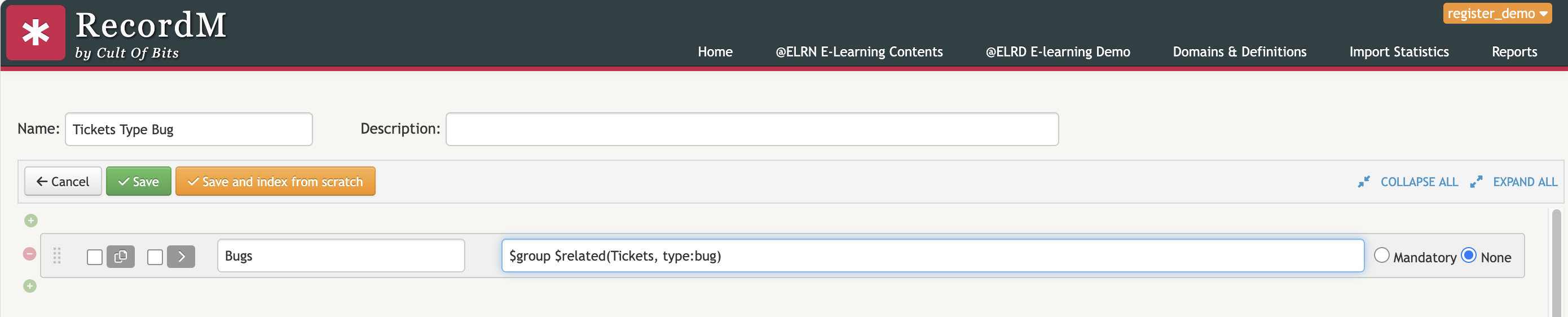

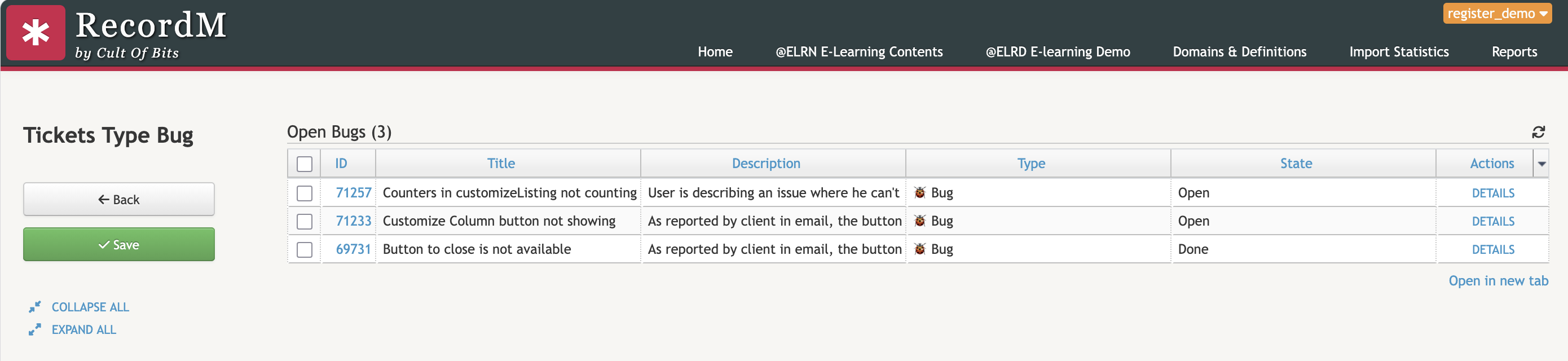

$related(Tickets, type:bug)

2. Using a dynamic query to find similar tickets

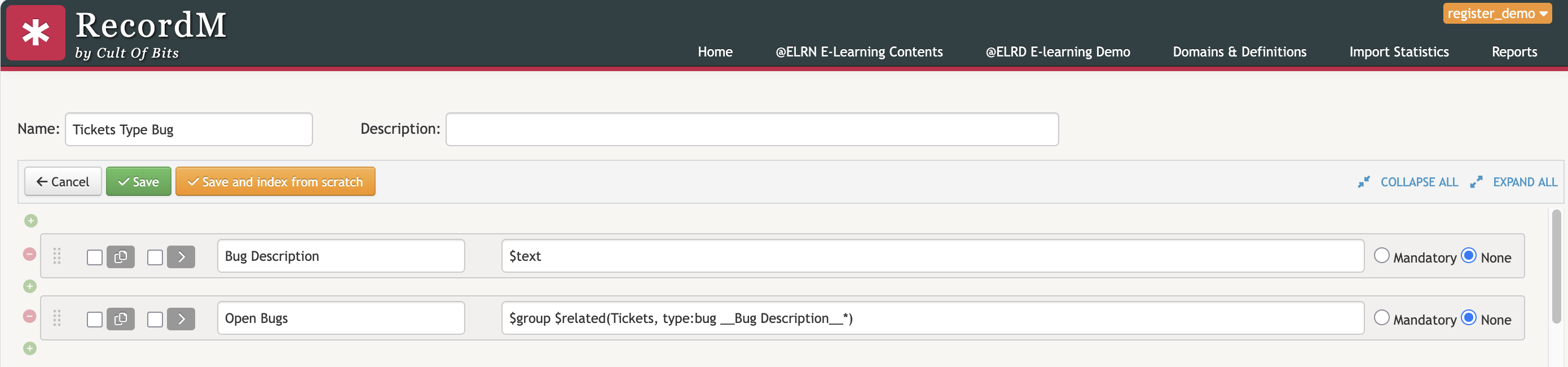

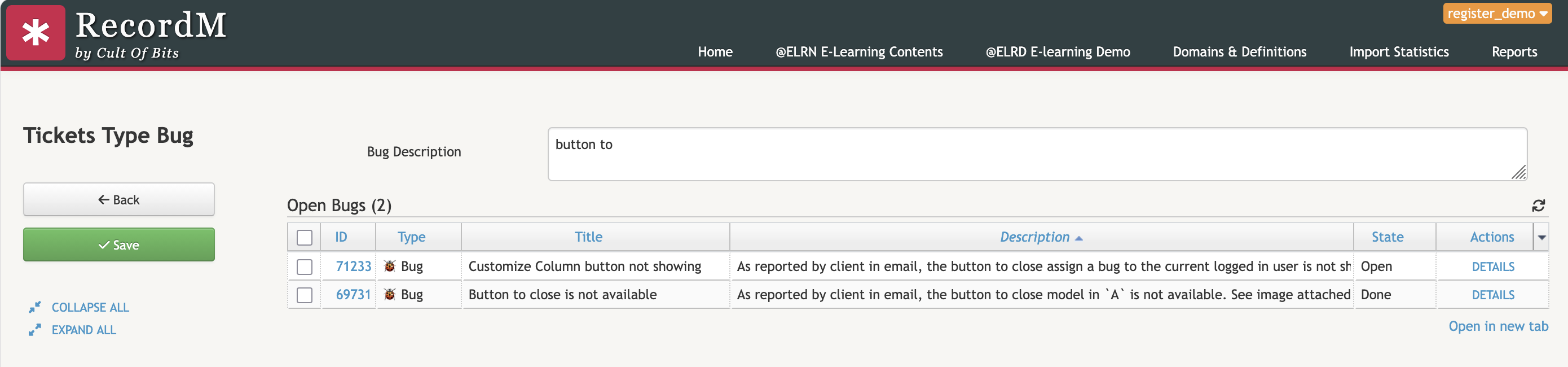

$related(Tickets, type:bug title:__Bug Description__*)
